Developer Workshop

Prerequisites 1

It should contain at least:

• A functionning development, production and test environment
• A couple of Bourreaux: one local, one on ace-vh-2
• A few DataProviders: one browsable, one EnCB, one remote...
• This CBRAIN plugins: cbrain-plugins-neuro

Prerequisites 2

• One browser window open on one of your screens
• Two terminal windows (or tabs) open on the other:
  1. One wide window with a small font for the server logs
  2. One wide window with a comfortable font for shell work

Workspace recommendations

1. Use one shell for the rails server
2. Clear the server's terminal window between requests (⌘-K on Macs)
3. Use one shell for the console
4. Do not exit them unless necessary!
5. One browser window for an admin user (with tabs)
6. Set .bashrc shortcuts to the main directories of the code base
7. If you need normal and admin users within the same browser, use the browser's incognito or private mode for one of them
8. Or use distinct browser (e.g. Safari+Firefox+Chrome, and each can have a private session!)

Example bashrc shortcuts

#------------------------------------------------------------
# CBRAIN Work Paths
#------------------------------------------------------------
cb=~/CBRAIN

p=$cb/BrainPortal
pl=$p/lib
ph=$p/app/helpers
pc=$p/app/controllers
pss=$p/public/stylesheets
pjs=$p/public/javascripts
pm=$p/app/models
pv=$p/app/views
pi=$p/config/initializers

The files

Each is a Rails application.

Bourreau/... is mostly symbolic links.

Look at that
• cd cbrain
• have a look at the files with ls
• check links in Bourreau/app/models/
• ask me about anything weird you see

Rails environments

Each can potentially connect to a distinct database.

Curious
• cd BrainPortal/config
• cat database.yml
• have a look at files there

Recommended for development work:

• development and production share the same DB
• test has its own DB

Rails core

Rails is a MVC framework, so you'll find
models/, views/ and controllers/.

Browse the files
• cd BrainPortal/app
• examine the models, views or controllers
• helpers/: view helpers
• assets/: static web assets (image, stylesheets etc)
• mailers/: 'models' for email messages

Initializers

Some files are provided by Rails, some by CBRAIN.

added_core_extensions/                  config_portal.rb.TEMPLATE               new_framework_defaults.rb
application_controller_renderer.rb      cookies_serializer.rb                   rack_config.rb
assets.rb                               filter_parameter_logging.rb             session_store.rb
backtrace_silencers.rb                  inflections.rb                          validation_portal.rb
cbrain.rb                               initialize_console.rb                   wrap_parameters.rb
cbrain_deprecation_tmp.rb               listen_temp_monkeypatch.rb
config_portal.rb                        mime_types.rb

Look at this
• cd BrainPortal/config/initializers
• ls
• Examine session_store.rb or cbrain.rb

Bourreau differences

• All models are the same (but with one more: bourreau_worker.rb)
• All libraries (in /lib) too

The main difference are:

• The bourreau has NO views, stylesheets, etc
• The bourreau has no database.yml
• The bourreau has only one controller: controls_controller.rb
• The boot process checks different things
• The CbrainTask subclasses each inherit different code

The Rails console 1

• Access to all Rails subsystems
• Extraordinary CBRAIN extensions (type cbhelp)

Starting it
• rails console development
• rails console production
• rails console test # might not work

The Rails console 2

no_log/do_log
• do_log
• u = User.first
• no_log
• u = User.first
• do_log { Tool.all }

current user/group
• cu
• current_user
• current_project
• cu User.last
• cp WorkGroup.last

The Rails console 3

It searches in many categories: files, tasks, users, groups, tools, etc.

If it finds a single record in a category, it sets a variable with a single letter name (e.g. @f for a file, @u for the user).

If it finds several records, its sets an array of results to a variable with two letters (e.g. @ff for many files, @uu for many user).

find anything!
• fff 12
• fff "admin"
• fff "civet"
• fff :civet

The Rails console 4

pv/tv
• User.all # shows CBRAIN's default tabular output
• u = User.last
• pv u
• tv u
• tv a: 1, b: 2
• table (1..5).map { |x| [x,x*x] }

pv works with Userfile, CbrainTask, User, Group, DataProvider, RemoteResource, Site and Tool ToolConfig.

tv works with anything that has .attributes or .to_h

The Rails console 5

plog
• u = User.last
• plog u
• u.addlog("Hello world")
• plog u

The Rails console 6

View helpers
• pretty_size 124_235_334
• pretty_past_date 26462383.seconds.ago
• puts array_to_table [1,2,3,4,5,6,7], table_class: 'junk'
• edit_task_path(CbrainTask.first)
• puts user_select()
• x = "Jack & Jill"; puts h(x)
• y = x.html_safe; puts y; puts h(y)
• puts y.class; puts y.class.superclass

The Rails console 7

As admin
• do_log
• b=Bourreau.first
• online b
• offline b
• acttasks
• trans

ibc rules!
• ibc
• A full Bourreau control interface, interactive
• ('q' to quit, btw)

The Rails console 8

Try this!
• self
• country # should crash
• u = User.first
• irb u # within IRB, there is an irb command
• self
• country
• new_record?
• attributes
• addlog "yep"
• puts getlog
• exit # to return to main

Console boot

C> CBRAIN System Checks starting, 2019-03-29 19:17:24 -0400
C> Ruby 2.4.1 on Rails 5.0.6, environment is set to 'development'
C> CBRAIN instance is named 'PID-51004'
C> Hostname is 'bianca.cbrain.mcgill.ca'
C> CBRAIN identified boot mode: console
(more messages...)
C> CBRAIN BrainPortal validation completed, 2019-03-29 19:17:28 -0400
Loading development environment (Rails 5.0.6)
C> CBRAIN Rails Console Initialization starting
Current user is now: admin
Current project is now: (nil)

Welcome the the CBRAIN Rails Console
To get a summary of the extra CBRAIN features, type 'cbhelp'.

Bianca :001 > █

Boot messages 1

C> CBRAIN System Checks starting, 2019-03-29 19:28:04 -0400
C> Ruby 2.4.1 on Rails 5.0.6, environment is set to 'development'
C> CBRAIN instance is named 'PID-51216'
C> Hostname is 'bianca.cbrain.mcgill.ca'
C> CBRAIN identified boot mode: console
C>      - Note:  You can skip all CBRAIN validations by temporarily setting the
C>               environment variable 'CBRAIN_SKIP_VALIDATIONS' to '1'.
C> Ensuring that this CBRAIN app is registered in the DB...
C>      - This CBRAIN app is named 'Bianca' and is registered.
C> Ensuring that the Sys::ProcTable gem is operational...
C>      - All good. Found process name: ruby
C> Setting time zone for application...
C>      - Time zone set to 'Eastern Time (US & Canada)'.

• Notice the version numbers at the top
• The instance name is no longer much used
• The app name is registered in config/config_portal.rb

Boot messages 2

C> Making sure we can track file revision numbers.
C>      - Revisions are fetched using: git
C> Cleaning up old SyncStatus objects...
C>      - No SyncStatus objects are associated with obsolete resources.
C>      - No SyncStatus objects are associated with obsolete files.
C> Checking to see if Data Provider cache is valid...
C> Checking to see if Data Provider cache needs cleaning up...
C>      - Wiping old files in Data Provider cache (in background).
C> Current application tag or revision: 5.1.1-4
C> Current Git branch: master

• Two ways to track revision numbers: git or a flatfile csv
• Consistency checks
• The DP cache wipe of old files are only for files that no longer even exist
• GIT info for making sure Rails boot within the proper codebase

Boot messages 3

C> CbrainTask::BidsAppHandler: Integrated CbrainTask::BIDSAppFMRIprep
C> CbrainTask::BidsAppHandler: Integrated CbrainTask::BIDSAppFreesurferReconAll
C> CbrainTask::BidsAppHandler: Integrated CbrainTask::BIDSExample2
C> CbrainTask::BidsAppHandler: Integrated CbrainTask::ExampleGoodbidsapp
...
C> Integrated CbrainTask::BEst from descriptor 'best_toolbox.json'
C> Integrated CbrainTask::NiakFmriPreprocess from descriptor 'FmriPreprocess.json'
C> Integrated CbrainTask::FslAnat from descriptor 'fsl_anat.json'
C> Integrated CbrainTask::FslBet from descriptor 'fsl_bet.json'
C> Integrated CbrainTask::FslEddyCudaForHcp from descriptor 'fsl_eddy_hcp_cuda.json'
C> Integrated CbrainTask::FslFast from descriptor 'fsl_fast.json'
...

• One line per Boutiques descriptor integrated
• Two integration modes however:
  • Descriptors integrated by the standard task BidsAppHandler
  • Descriptors integrated by the CBRAIN integrator

Boot messages 4

C> Checking for pending migrations...
C> Checking if the BrainPortal database needs a sanity check...
C> Making sure we have a SSH agent to provide our credentials...
C>      - Found existing agent: PID=13587 SOCK=/Users/prioux/CBRAIN/BrainPortal/tmp/
sockets/ssh-agent.portal.sock
C> Making sure we have a CBRAIN key for the agent...
C>      - Added identity to agent from file: '/Users/prioux/.ssh/id_cbrain_portal'.
C> Starting automatic Agent Locker in background...
C>      - Locker already being created. (/Users/prioux/CBRAIN/BrainPortal/tmp/AgentLocker.lock)
C> CBRAIN BrainPortal validation completed, 2019-03-29 19:28:09 -0400

• Sanity checks are needed only once, each time portal_sanity_checks.rb is changed
• The SSH agent is started once and is persistent across CBRAIN reboots
• Same thing with the SshAgentLocker
• State information in kept under BrainPortal/tmp/{pids|sockets}

Starting the server

• We use puma, a Ruby server with compiled C code
• You need to specify the rails environment and the local port number
• Defaults are, respectively, development and 3000
• The server can be started in two modes:
  1. Using the rails wrapper
  2. Directly invoking puma

Standard server launch

With rails
• cd BrainPortal
• rails server puma -e development -p 3000

Alternative server launch

Directly puma
• cd BrainPortal
• puma -e development -p 3000
• puma -h

Both methods support -d to demonize.

Process names

Example of ps process names you could see:

• CBRAIN Console BrainPortal MyName PID-83539
• CBRAIN Server BrainPortal MyName
• CBRAIN Server Bourreau MyName 1234
• ssh -q -n -N -x -M -o SendEnv=Bourreau_Beluga -p 22 -A ...

Rails 'development' environment 1

• This is what you mostly should use on your desktop
• It's meant to provide near-live feedback
• Code files are monitored and reloaded between each request
• Applies to everything in app/
• Crashes are handled with stack traces in browser
• Emails are not really sent
• Slower than 'production' environment

Rails 'development' environment 2

Mod this
• cd to BrainPortal/app/views/users
• add some correct HTML code to show.html
• browse to My Account
• add incorrect code in BrainPortal/app/controllers/users_controller.rb in method def show
• refresh page

Rails 'production' environment 1

• Switch to this to enable production-specific code
• Code changed while running won't have any effect
• Crashes are handled with production-specific handlers
• Emails are sent if possible!
• Faster execution than 'development' environment
• Logs are much more simplified
• Many preparation steps need to be run:
  1. Need secret token for encrypting the cookies
  2. Assets must be precompiled
  3. Static assets server MIGHT have to be enabled!

Rails 'production' environment 2

This is trickier
• make sure your dev server is down
• cd to BrainPortal
• rails server puma -e production
• access My Account
• Internal error? Then set config/secrets.yml or env SECRET_KEY_BASE
• Assets missing? Run with env RAILS_SERVE_STATIC_FILES
• Assets incomplete? Run rake assets:precompile
• Change a stylesheet rule, see how it doesn't show up even after a restart
• Examine the logs too, see how cleaner they are?

Generating the local doc

Make HTML pages
• cd {YOUR_CBRAIN_ROOT}
• bash script/make_local_doc.sh
• (wait, then cut-and-paste the URLs)
• (search for 'save_with_lo')

Coding style 1

• We use standard Ruby and Rails style, in general
• We have specific rules in the Wiki on GitHub
• We also require all methods that are visible to other programmers to have documentation in rdoc format
• Private methods and methods not meant to end up in the documentation need to be annotated with #:nodoc:

Let's view some
• Have a look at BrainPortal/lib/act_rec_log.rb
• Check the huge two documentation blocks before class ActRecLog
• The first is hidden, the second is shown
• Blank lines are critical!

Coding style 2

  # Creates a custom log entry with the revision info about +anobject+,
  # which is any object or class, supplied as the first argument. Its
  # revision_info will be extracted for the final message.
  #
  # Using this method on an ActiveRecord +obj+ with the class +Abcd+
  # in argument, like this:
  #
  #     obj.addlog_revinfo(Abcd,"hello")
  #
  # results is a log entry like this one:
  #
  #     "Abcd revision 123 prioux 2009-05-23 hello"
  def addlog_revinfo(anobject, message=nil, caller_level=0)
    # code not shown here
  end

• Text with +word+ will be highlighted
• Text indented MORE than the first comment line are code blocks
• No blank lines must be between the comment and the def line!

Coding style 3

Migrations

• DB Migrations are managed by Rails
• They are stored in timestamped files in db/migrations/nnnn.rb
• The full schema in db/schema.rb is re-dumped after every change
• Migrations are rollback-able

Migrate that
• cd BrainPortal
• rails generate migration AddProvinceToUsers
• edit the new file
• add in method 'change':
  add_column :users, :province, :string

• rails db:migrate
• check with the console:
  • u = User.last
  • u.province = 'QC'
  • u.save
  • tv u
• check db/schema.rb for changes; make sure only the province is added
• rails db:rollback
• if your installation is old: git checkout db/schema.rb

Rails sessions

• Single encrypted cookie
• Name: in BrainPortal/config/initializers/session_store.rb
• Content: a serialized hash table
• Shows up in Rails as method session with hash semantics
• Two important things in it:
  1. Key user_id: if exists, this user is logged in!
  2. Key session_id: a 40 digits hex identifier
• Cookie size limit: 4096 characters

View the cookie
• In your browser, find the cookie manager
• Find the cookie named BrainPortal5_Session associated with localhost
• It's a bunch of hex digits!

Cbrain sessions 1

• Added custom support for larger data
• Storage: ActiveRecord LargeSessionInfo
• One such record is created when the user logs in
• Main key is the session_id of Rails Session
• The utility hash is stored in column data, serialized
• Within the portal, it is accessible with method cbrain_session
• Access wrapper class: CbrainSession

Cbrain sessions 2

Inspect CB session
• (log out and log back in from the interface)
• In the console:
• LargeSessionInfo.all
• s = LargeSessionInfo.last
• tv s.data
• In the interface, go to the file manager and sort by a column
• In the console:
• s.reload; tv s.data

Debugging features

• CBRAIN_SKIP_VALIDATIONS: affect boot process
• CBRAIN_DEBUG_SQL_SOURCE_LINES: trace source of SQL statement
• CBRAIN_DEBUG_TRACES: trace system() and popen() calls
• CBRAIN_BOUTIQUES_DUMPDIR and CBRAIN_BOUTIQUES_DUMPTASK: dump the template-generated Boutiques code for tasks

All these variables can be used both when
running the server or running the console.

CBRAIN_SKIP_VALIDATIONS

Some validations are critical and cannot be
avoided, but all others will be skipped.

Compare the messages
• rails console
• CBRAIN_SKIP_VALIDATIONS=1 rails console

CBRAIN_DEBUG_SQL_SOURCE_LINES

ActiveRecord internal methods are hidden, only code
from the CBRAIN side is shown.

Try it
• CBRAIN_DEBUG_SQL_SOURCE_LINES=3 rails console
• group_select(:z, groups: Group.all.to_a);1
• fff :hello

CBRAIN_DEBUG_TRACES

Try it
• CBRAIN_DEBUG_TRACES=1 rails console
• system("touch .")
• IO.popen("uname -a") { |fh| puts fh.read }

CBRAIN_BOUTIQUES_DUMPDIR

Try it
• mkdir /tmp/dump
• CBRAIN_BOUTIQUES_DUMPDIR=/tmp/dump rails console
• examine the content of /tmp/dump now

If only a specific Boutiques task is of interest, its name (e.g. "FslBet")
can be specified in CBRAIN_BOUTIQUES_DUMPTASK
and only that task's code will be dumped.

Examining logs

• .../log/development.log
• .../log/production.log
• Bourreau/log/server_start.log # boot control script capture

They are mostly useful when running the server;
console statements are not logged there.

In development, the logs contain SQL statements that
are colored by type of action, and also include SQL time information.

Log examples

  Group Load (2.3ms)  SELECT `groups`.* FROM `groups` INNER JOIN `groups_users`
ON `groups`.`id` = `groups_users`.`group_id` WHERE `groups_users`.`user_id` = 1 ORDER
BY `groups`.`name` ASC
  EveryoneGroup Load (0.4ms)  SELECT  `groups`.* FROM `groups` WHERE `groups`.`type`
IN ('EveryoneGroup') AND `groups`.`name` = 'everyone' LIMIT 1
  Tool Load (0.6ms)  SELECT `tools`.* FROM `tools` WHERE (category <> 'background')
   (2.7ms)  SELECT COUNT(count_column) FROM (SELECT  1 AS count_column FROM `cbrain_tasks`
WHERE (cbrain_tasks.status <> 'Preset' AND cbrain_tasks.status <> 'SitePreset')
AND (cbrain_tasks.workdir_archived = 0 OR cbrain_tasks.workdir_archived IS NULL)
AND `cbrain_tasks`.`user_id` IN (1, 2, 3, 4, 5, 6, 8, 11, 23, 26, 27, 28, 29,
30, 31, 32, 34, 37, 43, 44, 45, 46, 51, 58, 59, 60, 61, 71) AND `cbrain_tasks`.`bourreau_id`
IN (2, 5, 8, 9, 10, 11, 12) LIMIT 10) subquery_for_count
  CACHE (0.0ms)  SELECT  `groups`.* FROM `groups` WHERE `groups`.`id` = 2 LIMIT 1
  Rendered portal/welcome.html.erb within layouts/application (448.1ms)
  Rendered layouts/_section_account.html.erb (7.3ms)
  CACHE (0.1ms)  SELECT  `remote_resources`.* FROM `remote_resources`
WHERE `remote_resources`.`id` = 1 LIMIT 1
  Rendered layouts/_section_menu.html.erb (7.7ms)
  Rendered messages/_message_display.html.erb (0.5ms)
  Rendered layouts/_section_main.html.erb (3.1ms)
  Rendered layouts/_section_footer.html.erb (0.4ms)
User: admin on instance PID-3162 from localhost (127.0.0.1) using Firefox 66.0

Debug: puts statements!

CBRAIN provides variations that colorize the output:

Debug: puts for timing

puts_timer "Checking code"
long_step_one()
puts_timer "Finished step 1", "green"
long_step_two()
puts_timer "Finished step 2", "red"

Checking code
Finished step 1: diff= 46.345642s / cumul= 46.345642s
Finished step 2: diff= 30.784296s / cumul= 77.129938s

Try it
• Edit BrainPortal/app/controllers/users_controllers.rb
• In method def show, add some puts_timer around the assignments
• Click on My Account and look at the logs

binding.pry

Debug this
• Edit BrainPortal/app/controllers/users_controllers.rb
• Find method def show
• Add binding.pry just before @log =...
• Click on My Account
• Have a look at your server's window: see a prompt!
• Inspect things: @default_bourreau, or request(), or params()
• Type step to step each statement (including entering)
• Type next to step each statement (without entering)
• Type exit to leave irb and continue execution

Finding where code is defined

It can return the filename and line number where a
method was defined.

A method named 'method'?
• u=User.last
• u.visible_users
• u.method(:visible_users)
• u.method(:visible_users).source_location

Console on Bourreau

IMPORTANT: because of PTY allocation conflicts, use a shell distinct from the one the bourreau master connection was started from.

Bourreau console
• start a new shell if necessary
• start a portal console
• Bourreau.all
• b=Bourreau.find(123)
• b.console
• # Or, as a class method: Bourreau.console(123)
• exit # to return to Portal's console

IMPORTANT: Hitting CTRL-C exits from the Bourreau's console!

Running the tests

The test framework is all under BrainPortal/spec/.

A requirement: the test database must exist.
The DB will be cleaned and reseeded as needed.

Test this
• rspec spec # runs all tests
• rspec spec/models/user_spec.rb # runs just one file
• rspec spec/models/user_spec.rb:36 # runs just one test

Writing unit tests

Another day maybe.

Let's have a look
• Go to BrainPortal/spec
• Examine factories/portal_factories.rb
• Examine models/user_spec.rb

API tests

• A curl-based framework, written in Perl
• A Ruby-based framework, which invokes the API classes generated from Swagger's spec

Both frameworks use the same set of small test
spec files called reqfiles.

Everything is under BrainPortal/test_api.

Curl-based API tests

Curl the world
• Go to BrainPortal/test_api
• Examine reqfiles/users/badnormpatch/* (info in reqfiles/README.md
• We test that a normal user cannot edit an admin user's full name
• cd BrainPortal
• rails server puma -p 3000 -e test
• cd BrainPortal/test_api
• RAILS_ENV=test perl curl_req_tester.pl badnormpatch
• RAILS_ENV=test perl curl_req_tester.pl

Note: verbosity and debug traces can be obtained
with -v 2 to -v 9. Default is -v 1; -v 0 is silent.

Ruby+Swagger API tests

I swagger I
• cd BrainPortal
• RAILS_ENV=test rake db:seed:test:api
• rails server puma -p 3000 -e test
• RAILS_ENV=test rake cbrain:test:api:client badnormpatch
• RAILS_ENV=test rake db:seed:test:api # must re-seed
• RAILS_ENV=test rake cbrain:test:api:client

Note: verbosity and debug traces can be obtained
with -v 2 to -v 9. Default is -v 1; -v 0 is silent.

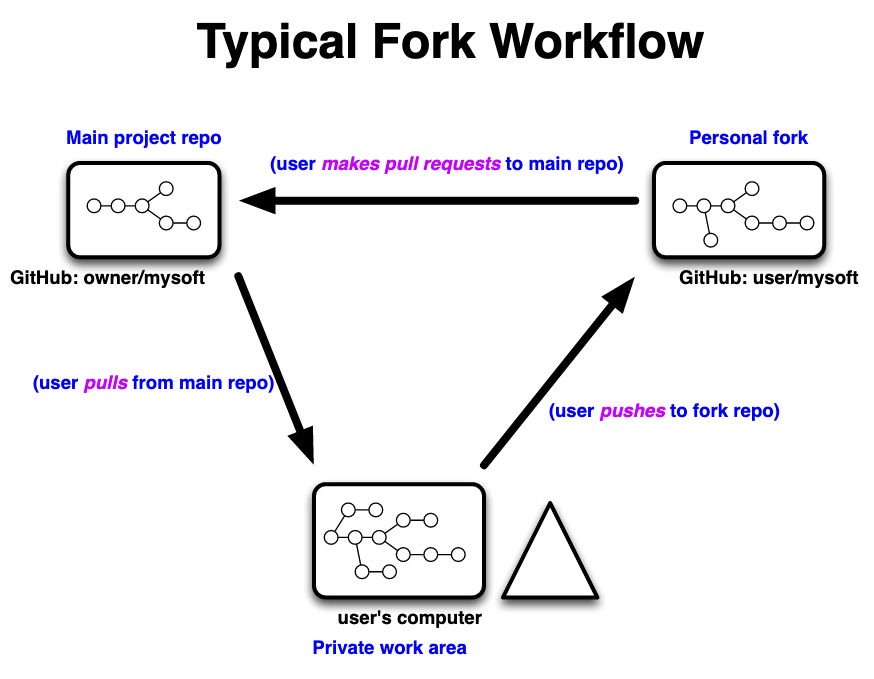

Protocol for PRs

1. The main GitHub repo for aces/cbrain
2. Your development workspace repo on your desktop
3. Your GitHub fork of cbrain

Information should propagate between them in that cycle:

1 -> 2 -> 3 -> 1, ... etc

Making a PR 1

From my GIT presentation (PDF)

Making a PR 2

1. git checkout dev # usually
2. git pull aces dev # or 'origin', basically the MAIN repo
3. git branch mybranchname
4. git checkout mybranchname
5. (modify, commit)
6. git push myfork mybranchname
7. (go to GitHub, make PR into dev)
8. (make more commits to mybranchname, push them to myfork)
9. When the PR is merged, switch to dev, pull from aces
10. git delete -d mybranchname
11. (delete mybranchname in myfork on GitHub)
12. git remote prune myfork

Boutiques integration 1

The code is all templated in BrainPortal/lib/cbrain_task_generators.

The file "schema_task_generator.rb" generates everything using the JSON descriptor, and the content of templates/*.erb

* 3 slides here

Boutiques integration 2

Boutique this
• cd BrainPortal/cbrain_plugins/cbrain-plugins-neuro/cbrain_task_descriptors
• Edit the description at the very end of fsl_bet.json
• Restart your console or server
• In the console:
• CbrainTask::FslBet.generated_from.descriptor["description"]

Static assets

In a production environment, the Rails server does not serve them, but assumes another more efficient server will provide them.

Some assets live in BrainPortal/app/assets and are compiled into .../public/assets/.

Dark Red Mode?
• cd BrainPortal/app/assets/stylesheets
• edit cbrain.css.erb
• change background: red for the body element
• Reload the page in your browser; scroll vertically

A new Userfile model 1

I am new here
• cd BrainPortal/cbrain_plugins/cbrain-plugins-base
• cd userfiles
• mkdir cbrain_log
• cd cbrain_log
• cp ../log_file/log_file.rb cbrain_log.rb
• edit cbrain_log.rb; change first line:


  class CbrainLog < TextFile

• rake cbrain:plugins:install:all
• Restart server and console; now you have CbrainLog

A new Userfile model 2

All of this is performed in the console:

Be born
• DataProvider.all
• (take note of the ID of any of them)
• f = CbrainLog.new
• f.data_provider_id = (ID here)
• f.name = "cb.log" ; f.user_id = 1 ; f.group_id = 2
• f.save!

A new Userfile model 3

All of this is performed in the console:

Eat bytes
• f = CbrainLog.last # if you don't already have
• content = File.read('log/development.log'); 1
• f.cache_writehandle { |fh| fh.write content }
• f # examine the size!
• f.provider_full_path.to_s # go and check it

Adding a viewer for CbrainLog

I see you now
• cd .../userfiles/cbrain_log
• edit cbrain_log.rb, add:


  has_viewer :no_color

• mkdir views
• cd views
• create the file _no_color.html.erb with content below:
• restart server, browse to file!

<pre>
<%  content = @userfile.cache_readhandle { |fh| fh.read } %>
<%= content.gsub(/\e\[[\d\;]*m/,"") %>
</pre>

About that viewer

• The whole file content is rendered; what if it's many gigabytes?
• We do not check if the content is synchronized. Conditions for viewers can be specified, e.g.


  has_viewer :no_color, :if => Proc.new { checks_here }

Creating a task

https://github.com/aces/cbrain/wiki/CbrainTask-Programmer-Guide

Inspecting routes

The file is a more or less a DSL with an easy-to-read structure.

Route 66
• Examine BrainPortal/config/routes.rb
• In a shell with >180 columns, run:
• rake routes

Creating a new action 1

The action is a query: how many files does a user have,
and what is the total disk space taken by them?

Count it
• Edit BrainPortal/app/controllers/users_controller.rb
• Add this method:


  def filecount
    puts_red "MY API STARTING"
    myfiles   = current_user.userfiles
    @numfiles = myfiles.count
    @totsize  = myfiles.sum(:size)
    puts_green "MY API END"
  end


• Also add :filecount in api_available list
• Edit BrainPortal/config/routes.rb
• Add the highlighted line:


    resources :users,  :except => [ :edit ] do
      member do
        get  'change_password'
        post 'switch'
      end
      collection do
        get  'filecount'
        get  'request_password'
        post 'send_password'
      end
    end


Creating a new action 3

Check it!
• Restart your server
• In your browser, go to http://localhost:3000/users/filecount
• The page should be blank!
• The server logs should say error 421
• But the puts_color messages are there!

Creating a new action 4

JSON and HTML
• go to BrainPortal/app/views/users
• Create filecount.json.erb:


  { "numfiles": <%= @numfiles %>, "totsize": <%= @totsize %> }


• Create filecount.html.erb:


  My <i>HTML</i> report: numfile=<%= @numfiles %>, totsize=<%= @totsize %>


• No need to restart server!
• In your browser, go to http://localhost:3000/users/filecount
• Try also http://localhost:3000/users/filecount.json

The End

Thank you

Project management:
Marc-Étienne Rousseau
Shawn Brown
